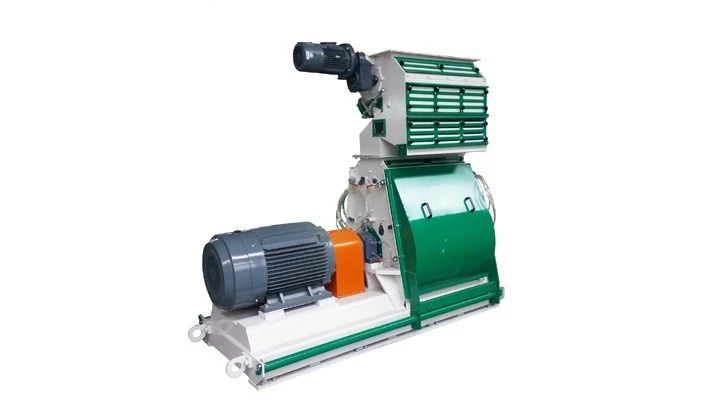

Maize Grinding Hammer Mill
The machine to crush granular materials
The maize grinding hammer mill to crush grain like corn, sorghum, wheat, and other granular material
It is suitable for fine grinding in feed, medicine powder, grain, and food industries.
Working principle
Guided by a guiding plate, the material enters the grinding chamber. By the impacting effect of high-speed running hammers and the friction effect of the screen, the particles size of the material will be smaller gradually until it can pass through the screen. Finally, the material is discharged out from the outlet by centrifugal force and air aspiration.
Features
(1) Fully optimized hammers arrangement and adjustable clearance between hammers and screen.
(2) High-precise dynamic balancing ensures running stably, lower noise, and perfect working performance.
(3) The rotor rotating in forward and backward directions can prolong the service life of wearing parts.
(4) The machine can be equipped with an advanced impeller feeder with a frequency converter or magnetic feeder to make the working performance more reliable.
Technical Parameter List
|
Type |
Capacity |
Main Shaft Speed |
Rotor Diameter |
Chamber Width |
Power |
|
t/h |
r/min |
mm |
mm |
KW |
|
|
SFSP56x36 |
2.5-3 |
2900 |
560 |
360 |
18.5/22 |
|
SFSP56x40 |
4-5 |
2900 |
560 |
400 |
30/37 |
|
SFSP112x30 |
7.5-10.5 |
2900 |
1120 |
300 |
55/75 |
|
SFSP112x40 |
12.5-16 |
2900 |
1120 |
400 |
90/110 |
Detailed Description
Rotor
Including the main shaft, hammer rack, pin, and bearing
The main motion part
High speed
Dynamic balanced
Hammer
Symmetrical arrangement
Two corners available
Heat treatment
Wear resistance
Screen
Various size mesh screens are available
Wear resistance
Punched screen
Maize Grinding Hammer Mill: High-Efficiency Grain Processing Machine
Q: What makes hammer mills ideal for maize processing?
A: Our maize hammer Mill:
● 3-5x faster grinding vs traditional stone mills
● Adjustable fineness (0.5-3mm particle size)
● Higher capacity (2-15T/H depending on model)
Q: Case Example:
A: A Kenyan posho mill increased production from 800kg to 2.5T daily after upgrading to our industrial hammer mill.
Q: Pro Tips:
A: 1) For fine flour: Use 1mm screen + higher RPM
2) For animal feed: 3-5mm screen + lower RPM
3) Always pre-clean maize to protect hammers
Q: Why Choose Our Hammer Mill?
A: • Heavy-duty cast iron construction
• Low maintenance design
• Energy efficient operation
• CE & ISO Certified
