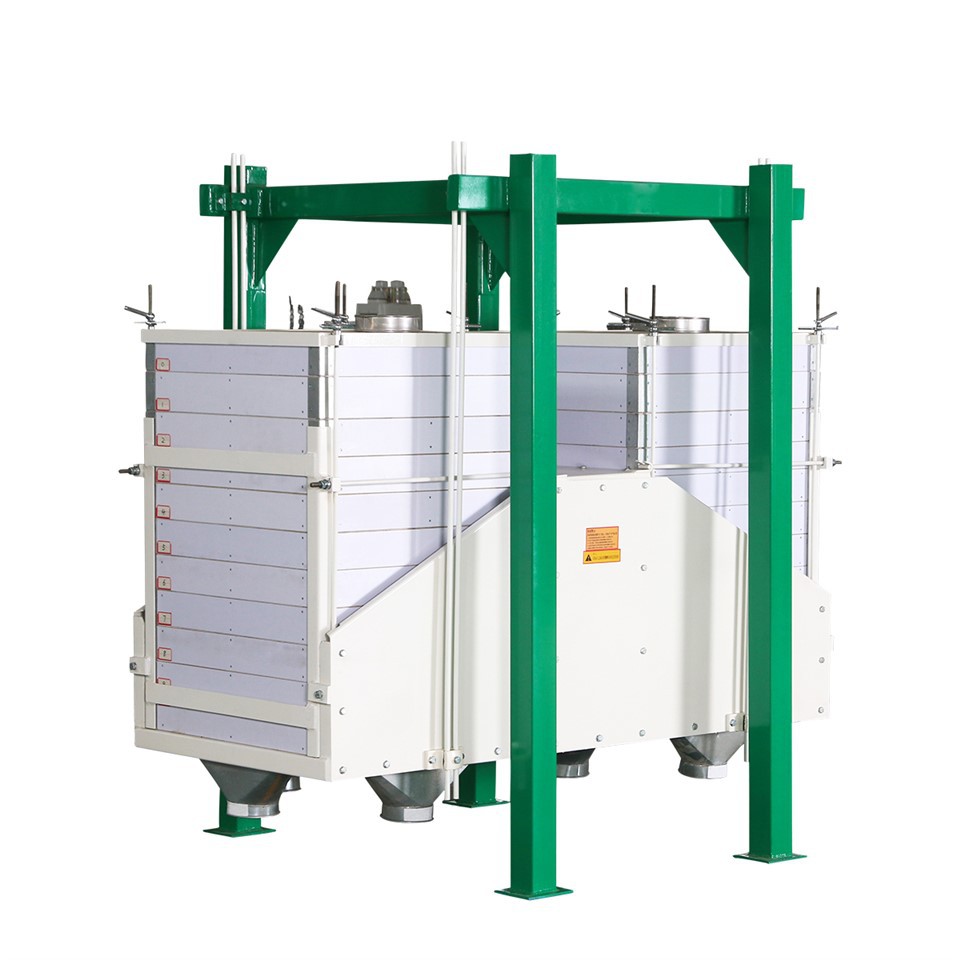

Plansifter Machine
The plansifter machine for sifting
The twin-section plansifter is a highly efficient sieving machine designed for final-stage flour classification in modern milling plants. Positioned between the primary sifting system and packing section, it ensures precise separation of pulverized materials, including:
Fine flour fractions (for end-product quality control)
Coarse wheat particles (for reprocessing)
Intermediate milled materials (for size-specific blending)
Key Advantages:
- Dual-compartment design for higher throughput
- Customizable sieve configurations for varied material types
- Industry-proven reliability in flour & rice milling operations
We offer tailored sieving solutions to match specific particle size distribution requirements.
Working principle
The Sifter is driven by a motor installed under the main frame to do plane rotary motion through the eccentric block. The material is fed into the inlet and flows down step by step according to respective design for different materials, and in the same time it is separated to several streams according to the particle size. The material can be separated into max. four types material. The flow sheet can be designed by different requirements.
Feature
1. Sieve Frame Configurations
Available in multiple standardized sizes:
630×630mm
700×700mm
830×830mm
1000×1000mm
2. Modular & Customizable Design
Adjustable sieve frame quantity for tailored sieving precision
Flexible sifting schemes to meet varying material classification needs
3. Premium Bearing System
Precision-balanced counterweight equipped with SKF bearings (Sweden) for smooth, vibration-free operation
4. High-Quality Sieve Frame Construction
Imported hardwood frames with melamine plastic coating for durability
Stainless steel trays for hygienic material handling
Quick-change design:
Demountable & interchangeable frames
Secured by top-mounted metal clamping frame with micrometer pressure screws
5. Dual-Section Efficiency
Doubled capacity vs. mono-section plansifters
Compact footprint: Space-saving design with lightweight structure
6. Flexible Installation Options
Floor-mounted on integrated frame
Ceiling-suspended via separate support structure
7. Optional Upgrades
SEFAR precision sieves for enhanced grading performance
This advanced plansifter ensures high-capacity, precision sifting with easy maintenance and long-term reliability for modern flour and rice milling operations.
Technical Parameter List
|
Type |
Sifter Frame |
Sifting Area |
Main Shaft Speed |
Capacity |
Rotary |
Power |
Weight |
Shape Size |
|
(piece) |
(㎡) |
(r/min) |
(t/h) |
Diameter |
(kW) |
(kg) |
LxWxH(mm) |
|
|
FSFJ2x10x63 |
6-12 |
4.2 |
290 |
2-2.5 |
Ø45-55 |
1.1 |
550-580 |
1680x1270x1500 |
|
FSFJ2x10x70 |
8-12 |
6.2 |
265 |
3-3.5 |
Ø45-55 |
1.1 |
650-670 |
1840x1350x1760 |
|
FSFJ2x10x83 |
8-12 |
8.5 |
255 |
5-7 |
Ø45-55 |
1.5 |
730-815 |
2120x1440x2120 |
|
FSFJ2x10x100 |
10-12 |
13.5 |
255 |
8-10 |
Ø45-55 |
2.2 |
1200-1500 |
2530x1717x2270 |
Detailed Description
Open and closed compartment designs are both available. The sieve area of closed type is larger and the sealing is better.
Wooden sieve frame, plastic coated to avoid damp deformation, 6-12 sieve frame arrangement per different requirement.
Integrated vertical and horizontal compressing to ensure the sieve frame tight, no displacement, no inter- leakage.
Fiberglass rod suspension for stable running and short start-up and short-down time.
Plansifter Machine: The Core Equipment for Precision Flour Grading
Q: Why is plansifter indispensable in modern flour mills?
A: Our plansifter delivers unmatched performance:
• 99% screening accuracy - critical for premium flour
• Multi-layer separation - up to 48 screens simultaneously
Q: Key Specifications
A: • Capacity: 5-30T/H per unit
• Power: 2.2-11kW (energy-saving models available)
• Screen Options: 10-400 mesh
Q: Case Study
A: A Canadian flour mill achieved:
• 0.2% reduction in ash content
• 15% increase in throughput
• 30% longer screen life
Q: Competitive Edge
A: • 30% less floor space than conventional models
• 2-year warranty on main frame
