Automatic Packing Line
The machine for packing
To pack powdery material, such as flour, starch, chemical materials and so on

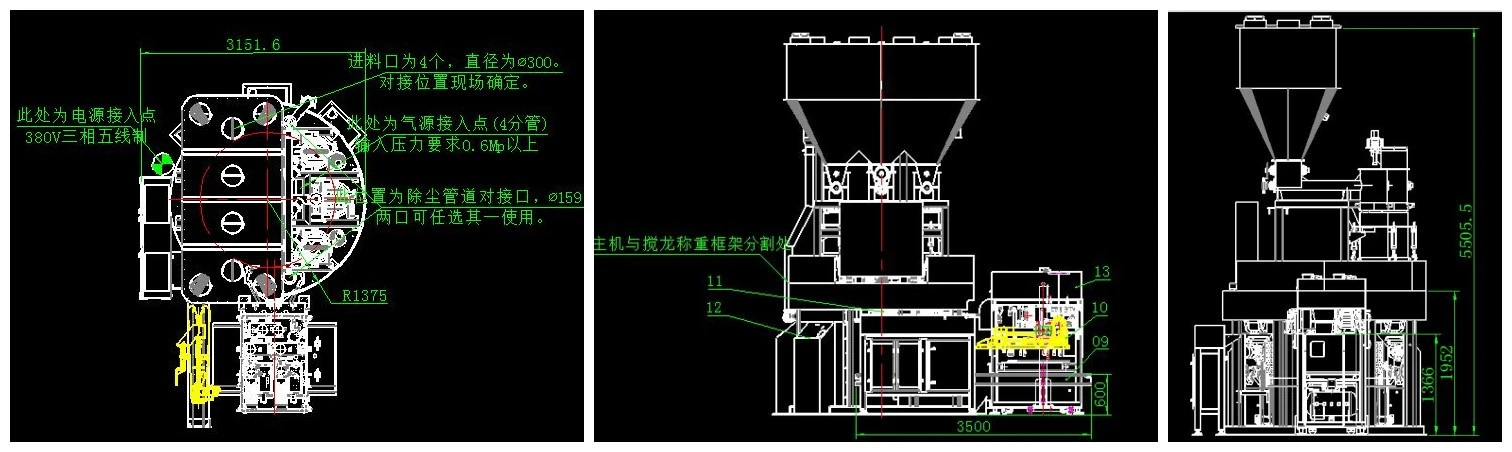

Machine Dimension
|
S.NO. |
Item |
Dimension |
Volume (CBM) |
|
1 |
Principal machine |
307028002200 |
18.9 |
|
2 |
Bag feeder |
175017402550 |
7.7 |
|
3 |
Flour feeder |
266026002150 |
14.5 |
|
4 |
Conveyor |
378012202100 |
9.5 |
|
5 |
Silo |
300014602300 |
9.6 |
|
Total |
60.36 |
Technical Parameter
|
S.NO. |
Item |
Data |
|
1 |
Capacity |
1000bags/h |
|
2 |
Weight |
6.8tons |
|
3 |
compressed air |
3.4CBM |
|
4 |
Total Power |
25kw |
|
5 |
Running power |
11KW |
|
6 |
blowing rate |
4500CBM |
|
7 |
silo |
5CBM |
|
8 |
Main power line |
10mm2 |
|
9 |
Air pressure |
0.8MPA |

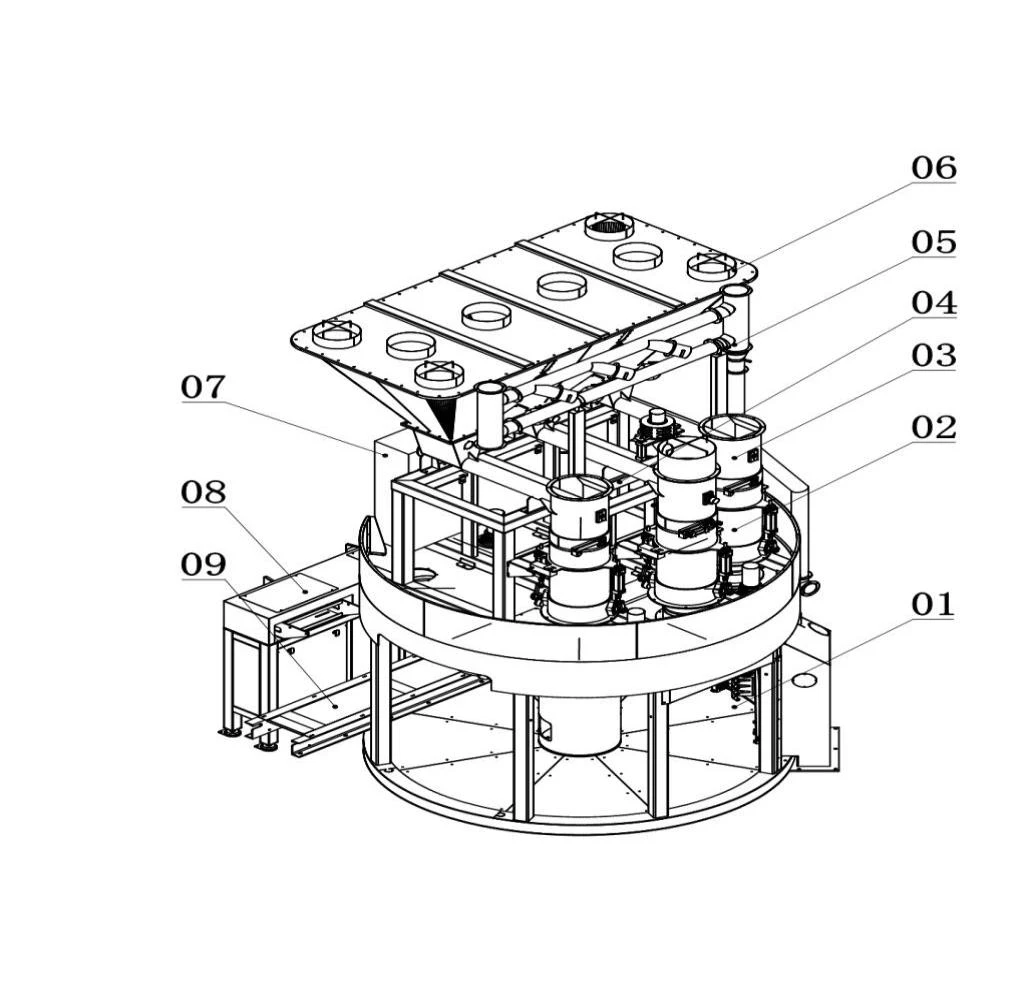

Structure
|
01. Main machine |
04. Auger frame |
07. Control cabinet |
|
02. Weighing mechanism |
05.Dust removal system |
08. Bag opening and transfer mechanism |
|
03. Auger feeding system |
06. Silo |
09. Conveyor |
Partial View
Notice: It should be that we reserve the right to change the contents of this catalogue out prior notice.
